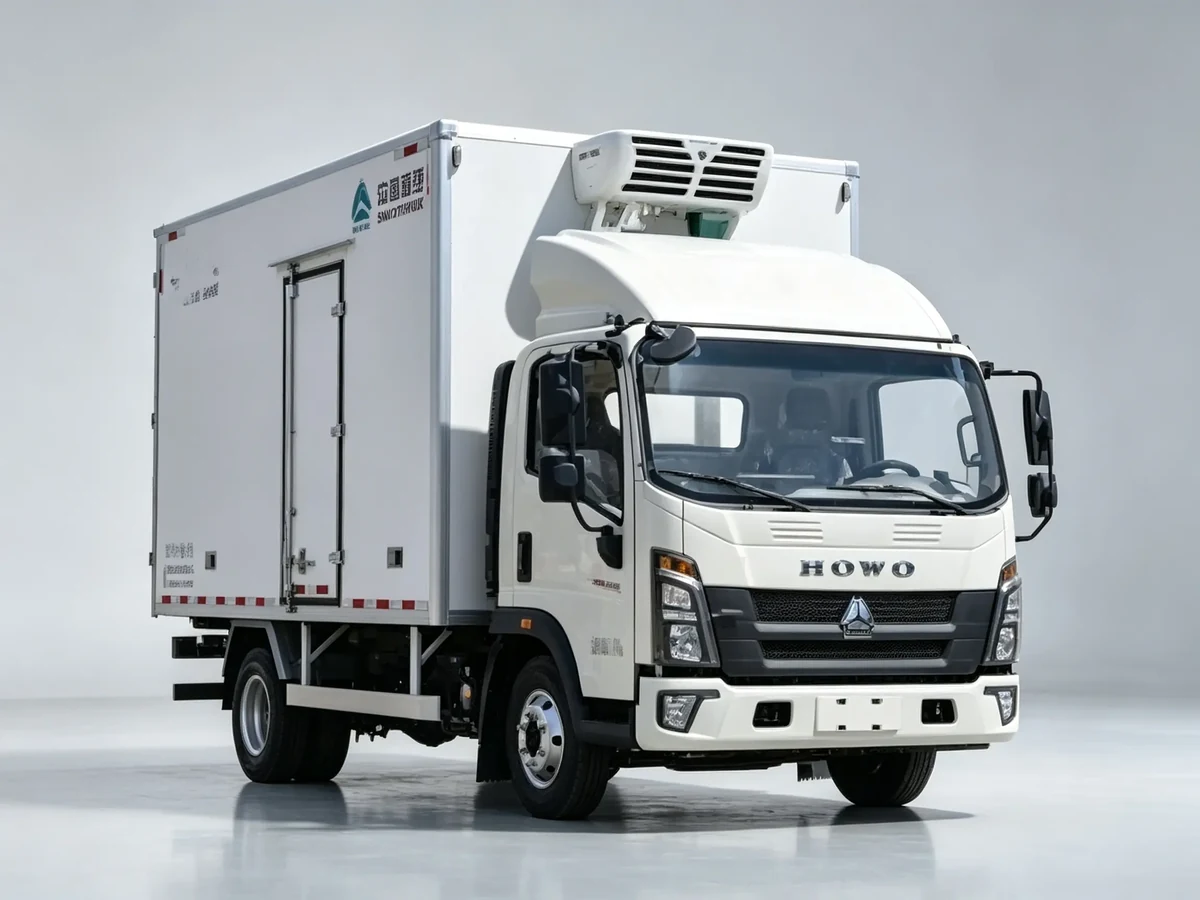

SINOTRUK HOWO 10t Refrigerated Trucks
Applicable Model: ZZ1127G4715C1 (LHD) / ZZ1127G4715C1R (RHD)
Product Positioning: The SINOTRUK HOWO new-generation 4×2 10-ton refrigerated Trucks adopt reinforced single-axle structure with large load capacity and solid chassis. Original factory integrated refrigeration unit with excellent thermal insulation. It supports multi-emission standards, LHD/RHD and custom body color original factory customization, with universal spare parts and low maintenance cost, serving as a mainstream model for overseas cold chain transportation.
Alternative Names: HOWO 10t Refrigerated Trucks, HOWO 4×2 Refrigerated Trucks, Overseas Cold Chain Logistics Trucks, Export Refrigerated Transport Trucks
Model data
Technical Specifications
Core Parameter Summary
| Core Parameter | Value |
|---|---|
| Drive Type | 4×2 Single-axle Reinforced Structure |
| Overall Dimensions | 8900‑9400 × 2496 × 3700‑3960 mm |
| GVW | 18000 kg |
| Emission Standard | Euro 2 / Euro 3 / Euro 5 |
| Horsepower | 160/180 HP Multiple Options (Yuchai YC4E 4-cylinder, no 6-cylinder version) |
Standard Export Parameters
| Item | Specification |
|---|---|
| Brand Series | SINOTRUK HOWO |
| Chassis Model | ZZ1127G4715C1 (LHD) / ZZ1127G4715C1R (RHD) |
| Drive Type | 4×2 rear axle drive |
| Wheelbase | 4700 mm |
| Curb Weight | 7700‑8300 kg |
| Max Speed | 95 km/h |
| Max Gradient | 28% |
| Minimum Ground Clearance | 230 mm |
| Cargo Box Size | 6750×2410×2420 mm standard refrigerated box, FRP inside and outside, PU foam insulation, stainless steel locks, customized thickness and structure available |
| Fuel Tank | 200L aluminum alloy lightweight anti-corrosion fuel tank, 300L large capacity tank optional for long-distance cruising |
| Engine | Yuchai YC4E series 4-cylinder turbocharged intercooled diesel engine, 160/180HP for Euro 2, Euro 3 and Euro 5, featuring high torque and sufficient power reserve with stable operation; this chassis is 4-cylinder only, no 6-cylinder version |
| Transmission | WLY6T51 / DC6J65TC 6-speed manual gearbox with high transmission efficiency and anti-slip performance under heavy load, AMT automatic transmission optional for smooth shifting |
| Clutch | 300mm diaphragm spring dry clutch with strong load capacity and high wear resistance for stable heavy-load starting |
| Axle Configuration | 3.2–3.6T front axle + 8–10.5T single reduction rear axle, professional heavy-duty configuration with optional gear ratio and excellent driving stability |
| Steering System | Hydraulic power steering with stable and accurate control and flexible operation |
| Brake System | Dual-circuit air brake, spring parking brake and engine exhaust auxiliary brake, equipped with ABS anti-lock system, ensuring safe, stable and short-distance braking |
| Tire Specification | 10.00R20 / 295/80R22.5 heavy-duty tires, 6 running tires + 1 spare tire |
| Electrical System | 24V full-vehicle electrical system with dual 12V batteries in series, ensuring stable power supply under complex road and heavy-load conditions |
| Refrigeration System | Original factory integrated non-independent/independent refrigeration unit, temperature range -18℃ ~ +10℃ adjustable, optional brands, uniform box temperature, meeting deep-freeze and fresh-keeping needs |
| Cab | New HOWO single-sleeper all-steel cab with four-point floating suspension. Standard configuration: air suspension driver seat, electric heating rearview mirrors, power windows, automatic air conditioner, multi-functional steering wheel, full-vehicle noise reduction and large-capacity storage space, delivering superior comfort and safety |
| Body Color | Standard factory colors: HOWO White, Engineering Red. Custom exclusive body colors are available via original factory customization, adopting full-vehicle anti-corrosion baking paint technology with excellent UV resistance and corrosion resistance. |
| Standard Accessories | High-position metal bumper, protective lamps, reverse warning device, full-vehicle anti-corrosion coating, air horn and headlight protection device |
| Parts Universality | Chassis, power, axle, brake and body parts are universal with full HOWO light/medium trucks series, featuring large overseas market stock, sufficient spare parts, convenient maintenance and low operating costs |
| Gross Vehicle Weight | 18000 kg |
| Overall Dimensions (L×W×H) | 8900‑9400 × 2496 × 3700‑3960 mm |
| Approach / Departure Angle | 19° /13° |
FAQ
Q1: Is the HOWO 10t refrigerated trucks an original factory export model?
It is an officially designated export 4×2 refrigerated model of SINOTRUK HOWO series with brand-new original heavy-duty chassis and integrated refrigerated box. There is no domestic modification or non-standard refit, fully complying with global export access standards.
Q2: Are spare parts universal for all horsepower versions?
All horsepower versions share the same single-axle heavy-duty chassis, rear axle, gearbox and body parts, with only slight differences in engine accessories, ensuring convenient global maintenance and high spare parts popularity.
Q3: Is custom service available?
Original factory LHD/RHD customization, Euro 2/Euro 3/Euro 5 emission selection and refrigerated box structure size customization are supported. Custom body color service is also available to meet personalized appearance demands. LHD suits Africa, Central Asia, Middle East and South America; RHD suits Southeast Asia, Australia and Commonwealth regions.
Q4: How to choose Euro 2/Euro 3/Euro 5 versions?
Euro 2 mechanical injection version adapts to areas with poor fuel quality and simple maintenance conditions with low failure rate; Euro 3 and Euro 5 electronic versions meet high environmental access standards with fuel-saving and eco-friendly performance.
Q5: What working conditions are suitable for different horsepower versions?
160HP for urban distribution and short-distance cold chain; 180HP for regional trunk logistics and mountainous roads or steep slopes high-intensity refrigerated transport.
Q6: What are the core advantages of this model?
Equipped with reinforced 4×2 single-axle chassis, it achieves 12-ton compliant large load capacity and high stability. The mature high-power assembly delivers sufficient power, high attendance rate and low failure rate. With excellent original factory thermal insulation, multiple customization options and low maintenance cost, it features high cost performance for overseas refrigerated transportation.
