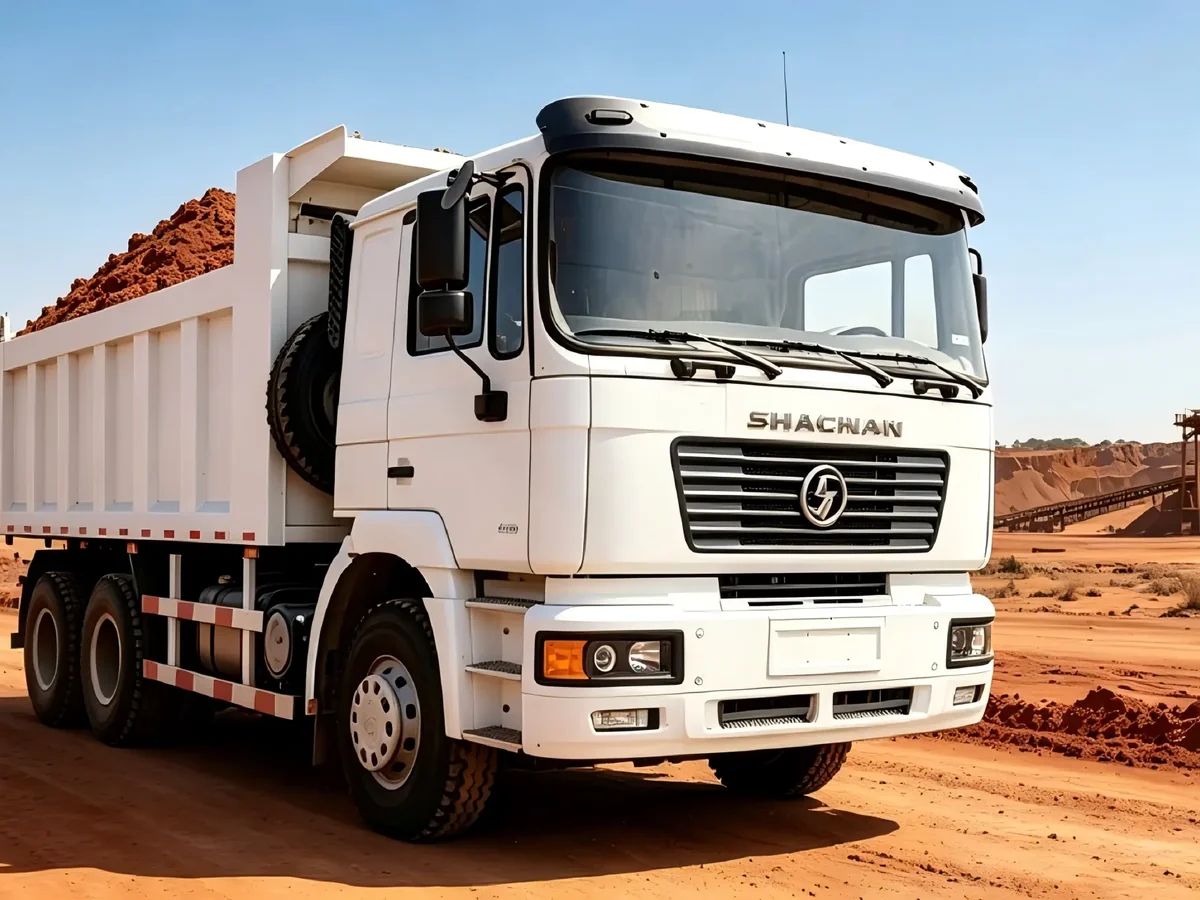

SHACMAN Delong F3000 Dump Trucks
Applicable Model: SX3257DR464 (Left Hand Drive) / SX3257DR464R (Right Hand Drive)
Product Positioning: The SHACMAN Delong F3000 classic 6×4 heavy-duty export dump Trucks adopt a mature military-grade chassis. It features stable performance, high durability and wide working condition adaptability, serving as a mainstream best-selling model for overseas infrastructure, earthwork and sand transportation. Supporting multi-horsepower and multi-emission factory customization, it boasts convenient maintenance and outstanding cost performance with huge global market inventory.
Alternative Names: SHACMAN F3000 6×4 Tipper, Delong F3000 Heavy Duty Dump Trucks, Overseas Engineering Dumper
Model data
Technical Specifications
Core Parameter Summary
| Core Parameter | Value |
|---|---|
| Drive Type | 6×4 |
| Overall Dimensions (mm) | 7900-8700×2500×3350-3550 |
| Payload Capacity | 25000 |
| Emission Standard | Euro 2 / Euro 3 / Euro 5 |
| Horsepower (HP) | 336 / 340 / 375 / 380 / 400 |
Standard Export Parameters
| Item | Official Export Parameters |
|---|---|
| Brand Series | SHACMAN Delong F3000 Classic Heavy-duty Platform |
| Chassis Model | SX3257DR464 (LHD) / SX3257DR464R (RHD) |
| Drive Type | 6×4 10-wheel heavy-duty drive |
| Overall Dimensions (L×W×H, with optional body) | 7900-8700 × 2500 × 3350-3550 mm |
| Wheelbase | 3775mm + 1400mm |
| Curb Weight (Bare Chassis) | 8900-9100 kg |
| Gross Vehicle Weight (Technical) | 41500 kg |
| Maximum Speed | 85km/h |
| Maximum Climbing Gradient | 40% |
| Minimum Ground Clearance (Complete Vehicle) | 280-310 mm |
| Approach / Departure Angle(Bare chassis) | 28° / 30° |
| Cargo Box Inner Dimensions & Volume | 5200-6000 × 2300 ×1400-1600 mm, 16.69-22.08 m³ |
| Cargo Box Steel Plate | 8mm floor & 6mm side export wear-resistant steel |
| Lifting System | Middle-top hydraulic lifting system |
| Fuel Tank Capacity | 380L steel tank, optional 400L aluminum alloy tank |
| Engine Versions | 336HP/340HP(Euro2) / 375HP/380HP/400HP(Euro3/Euro5) |
| Transmission | FAST 10JSD180 manual gearbox with heavy-duty PTO |
| Clutch | Φ430mm diaphragm spring dry clutch |
| Front Axle | 9.5T MAN technology heavy-duty steering axle |
| Rear Axle | 16T dual rear axle with inter-wheel and inter-axle differential lock |
| Steering System | ZF hydraulic power steering system |
| Brake System | Dual-circuit air brake, spring parking brake, engine exhaust auxiliary brake |
| Tire Specification | 12.00R20 heavy-duty steel tires, 11 pieces including spare tire |
| Cab | Delong F3000 extended single sleeper cab with 4-point floating suspension and hydraulic tilting system. Equipped with multi-adjustable seats, adjustable steering wheel, electric windows, automatic air conditioner, external sun visor, dual-arm wiper and car radio, delivering reliable comfort for long-term heavy-duty operations. |
| Electrical System & Accessories | 24V export standard electrical system, dual batteries, high-position steel bumper, reverse warning device and full-vehicle anti-corrosion treatment |
FAQ
Q1: What is the product positioning and its core advantage?
The SHACMAN Delong F3000 is a classic heavy-duty dump trucks model developed for overseas markets. Its military-grade chassis is stable and durable, its power matching is mature, and its heavy-load performance suits mining, infrastructure, earthwork and sand-and-gravel transportation. It offers strong cost performance and has a large global installed base.
Q2: Is the chassis shared by the different horsepower versions?
All horsepower versions share the same factory-standard chassis and core hardware. Only the engine power parameters differ, helping reduce subsequent maintenance costs.
Q3: Are LHD and RHD configurations available?
Yes. Factory LHD and RHD configurations are available to meet the market-access regulations of different regions.
Q4: How should the emission version be selected?
The Euro 2 version suits regions with lower fuel quality and limited maintenance capability. Euro 3 and Euro 5 versions suit markets with stricter environmental-access requirements.
Q5: Which working conditions suit the different horsepower versions?
336 / 340 HP suits routine short-distance transport; 375 HP suits general infrastructure work; and 380 / 400 HP high-torque versions suit frequent heavy loads, mining sites and steep grades.
